Electronic Ignition Systems
Outdoor and Indoor Fireplaces, Fire Features & Fire Pits - Our remote controlled, electronic ignition fire & water systems afford you design creativity in all your living spaces whether indoors or out.
AWEIS Standard Capacity
All Weather Electronic Ignition System - Standard Capacity AWEIS SC
Flame / Heat Sense: Thermopile
Ignition Type: Hot Surface Ignition (Glow Plug)
Ignition Sequence: Intermittent Pilot
Ignition Source: Pilot
Max. Btu Output: 290K Btu/hr
Inlet / Outlet Size: ½" FPT
Operating Voltage: 24 volts ac
Inlet Gas Press. Limit: 2.0 psi
Value Enclosure Dim.: 4 3/8" x 4 3/8" x 4 3/8" (tall)
AWEIS High Capacity
All Weather Electronic Ignition System - High Capacity AWEIS HC
Flame / Heat Sense: Thermopile
Ignition Type: Hot Surface Ignition (Glow Plug)
Ignition Sequence: Intermittent Pilot
Ignition Source: Pilot
Max. Btu Output: 512K Btu/hr
Inlet / Outlet Size: 3/4" FPT
Operating Voltage: 24 volts ac
Inlet Gas Press. Limit: 2 0 psi
Value Enclosure Dim.: 4 ½" x 4 ½" x 5"(tall)
AWEIS Side View
The AWEIS SC is the smallest Electronic Ignition System for use in Fire Bowls and Fire Pits on the market today. Its small size, especially in height makes it the perfect match for those features that do not have much room in the vertical.
The AWEIS HC is a slightly larger version of the AWEIS SC in terms of physical dimension but delivers considerably more gas than its smaller counterpart. With a maximum gas output of 512K Btu/hr – which is a very large amount of gas - it can be used in the larger fire features that require a considerable amount of gas to create the desired effect.
Vulcan
Vulcan Fire Module VFM
Flame / Heat Sense: Thermopile
Ignition Type: Hot Surface Ignition (Glow Plug)
Ignition Sequence: Intermittent Pilot
Ignition Source: Pilot
Max. Btu Output: 25K Btu/hr
Inlet / Outlet Size: ½" FPT
Operating Voltage: 24 volts ac
Inlet Gas Press. Limit: 2.0 psi
Value Enclosure Dim.: 2 1/2" x 6 1/2"

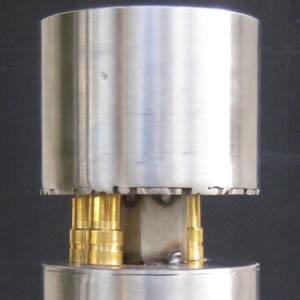

Vulcan Close Up
The Vulcan Fire Module is the smallest Electronic Ignition System on the market today. Its small size makes it perfect for those 'very' small fire features such as small bowls, rock crevices or other cylinder shaped fire features. The flame pattern the Vulcan emits is identical to our Tiki Torches as shown in the photo at right.
Vulcan in Action
